8 Ton Mini Excavator Powered by Kubota Engine Euro5
8 Ton Mini Excavator Powered by Kubota Engine Euro5
8 Ton Mini Excavator Powered by Kubota Engine Euro5
8 Ton Mini Excavator Powered by Kubota Engine Euro5
  • 8 Ton Mini Excavator Powered by Kubota Engine Euro5
  • 8 Ton Mini Excavator Powered by Kubota Engine Euro5
  • 8 Ton Mini Excavator Powered by Kubota Engine Euro5
  • 8 Ton Mini Excavator Powered by Kubota Engine Euro5

8 Ton Mini Excavator Powered by Kubota Engine Euro5

    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF,EXW,CPT,FCA,DDP,DDU
    Min. Order: 1 Set/Sets
Contact Now

Basic Info

Model No.EX-18Plus

BrandWenpeng

Applicable IndustryManufacturing Plant, Home Use, Energy &Amp; Mining, Building Material Shops, Machinery Repair Shops, Farms, Construction Works

Out-of-warranty ServiceVideo Technical Support, Online Support

Place Of OriginChina

ExerciseCrawler Excavator

Warranty Period1 Year

Engine BrandKubota

Mechanical Test ReportProvided

Video Factory InspectionProvided

Bucket Capacity0.04m³

Operating Weight1.8Ton

Additional Info

PackagingExport wooden box packaging

TransportationOcean,Land

Place of OriginChina

CertificateCE\Euro 5

PortQingdao

Payment TypeL/C,T/T

IncotermFOB,CFR,CIF,EXW,CPT,FCA,DDP,DDU

Product Description

1.8Ton Mini Excavator With Kubota Engine Euro5

The 1.8 Ton Mini Excavator, Model EX-18 Plus

The 1.8 ton mini excavator, model EX-18 Plus, is equipped with a Kubota engine and meets Euro 5 emission standards, designed for small sites and urban environments. It is designed to provide high performance and flexibility to meet a variety of detailed excavation needs.

Features

  1. Tailless Design
    The 1.8 ton mini excavator has a compact structure and a 360-degree rotating body, which is suitable for all-round operation in a small space and is easy to turn and move.
  2. Efficient and Environmentally Friendly Power System
    The EX-18 Plus mini excavator is equipped with a Kubota engine with excellent performance to ensure strong power output. It meets Euro 5 emission standards, reduces pollution, and meets environmental protection requirements.
  3. Optimized Hydraulic System
    The advanced hydraulic system design can respond quickly, achieve efficient operation capabilities, and ensure smooth excavation and lifting.
  4. Comfortable Control Experience
    The spacious cab provides a good view, equipped with a comfortable seat and an intuitive control panel.
    Equipped with noise reduction and shock absorption design to enhance the comfort of the operator.
  5. Safe and Reliable
    The 1.8Ton Kubota mini excavator is equipped with a stable crawler chassis system and is equipped with overturning protection to ensure safe operation.
  6. Versatility
    The Wenpeng mini excavator adopts a quick-disassembly design for attachments, and the attachments can be replaced as needed to meet different operations. Such as lawn mowers, breaker hammers, forks, rakes, grapples, etc.

Parameters

Model EX-18 Plus
Bucket Capacity 0.04m³
Swing Speed 10-13 rpm
Gradeability 35°
Max. Bucket Digging Force 14 kN
Max. Arm Digging Force 10 kN
Engine Model Kubota D722
Power/Revolution Speed 10.2/2500 (KW/rpm)
System Pressure 18 MPa
Dimension 3100*1100*2300 mm
Cabin Height 2300 mm
Axle Base 1250 mm
Wheel (Track) Distance 820 mm
Min Ground Clearance 150 mm
Tail Swing Radius 1125 mm
Max. Digging Height 2800 mm
Max. Dumping Height 1850 mm
Max. Digging Depth 2100 mm
Max. Vertical Digging Depth 1725 mm
Max. Digging Radius 3350 mm
Min. Swing Radius 1720 mm

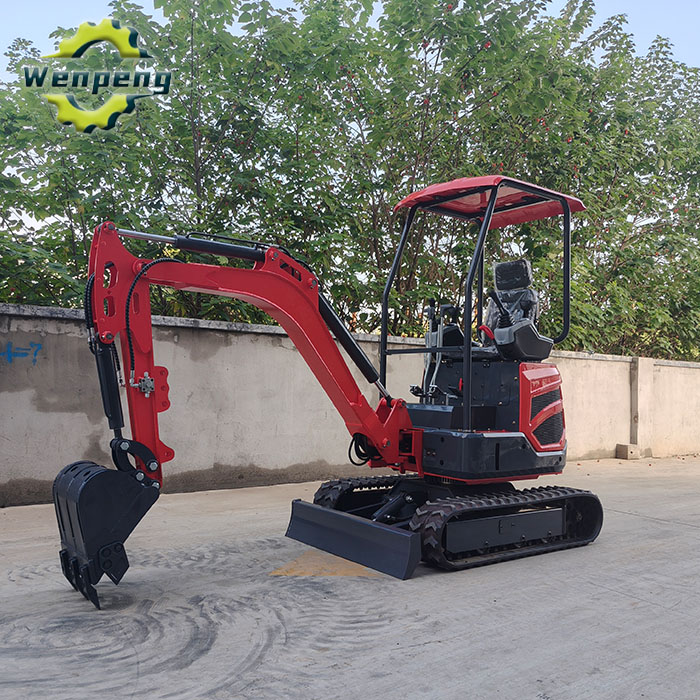

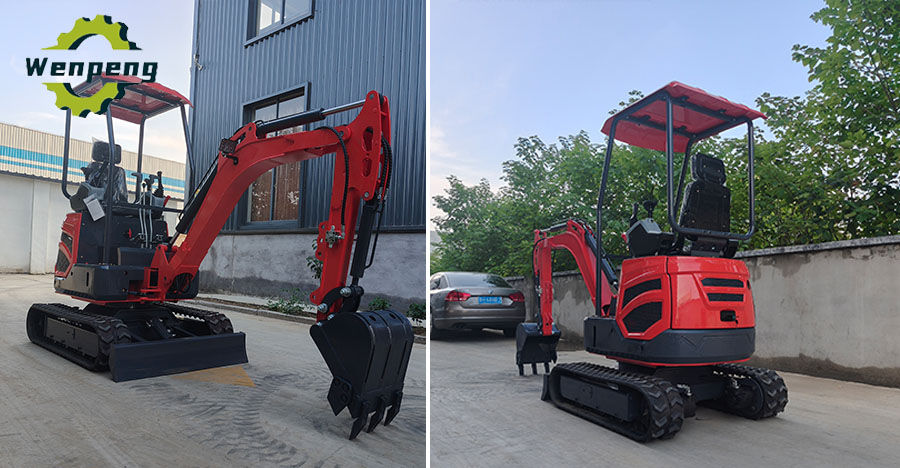

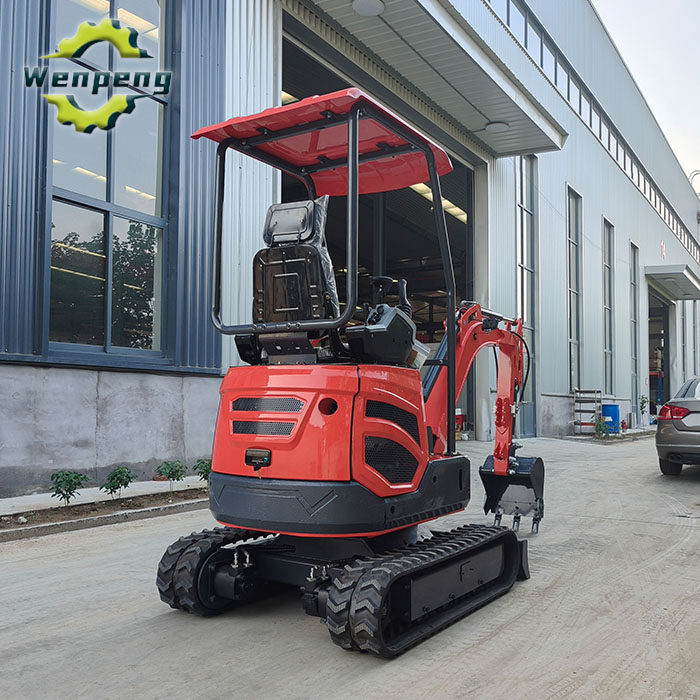

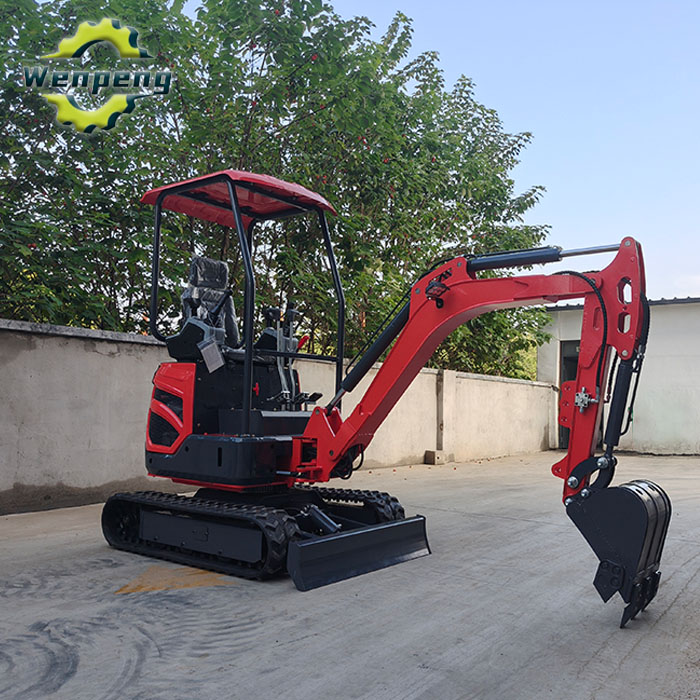

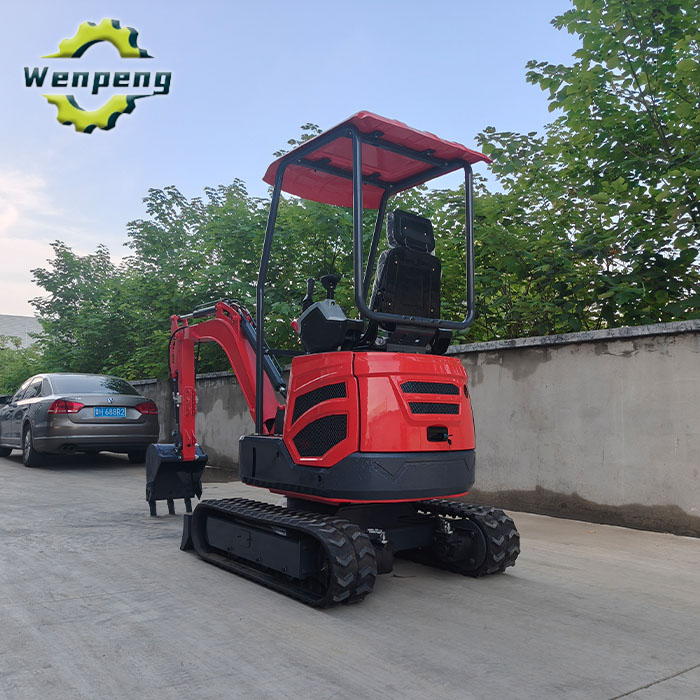

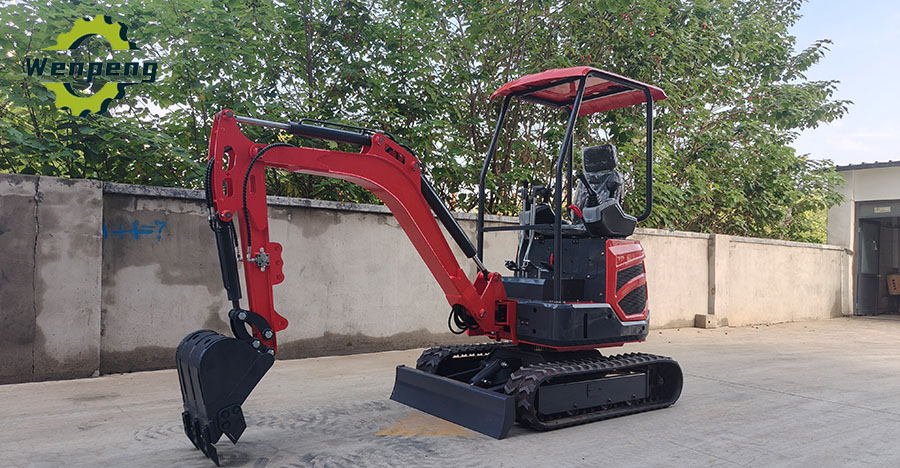

1.8Ton Mini Excavator EX-18 Plus Photo1 1.8Ton Mini Excavator EX-18 Plus Photo2

Applications

The 1.8ton Kubota mini excavator is widely used in:

  • Municipal engineering: small infrastructure construction such as drainage ditch and pipeline laying, road repair, etc.
  • Landscaping: suitable for tree transplanting, flower bed excavation and gardening projects.
  • Residential construction: foundation excavation and earthwork for small houses.
  • Agricultural use: farmland preparation, irrigation system installation and maintenance.

Product Categories : Constrction Machine And Truck > Excavator
