5 Ton Medium Crawler Hydraulic Excavator for Earthmoving
5 Ton Medium Crawler Hydraulic Excavator for Earthmoving
5 Ton Medium Crawler Hydraulic Excavator for Earthmoving
5 Ton Medium Crawler Hydraulic Excavator for Earthmoving
  • 5 Ton Medium Crawler Hydraulic Excavator for Earthmoving
  • 5 Ton Medium Crawler Hydraulic Excavator for Earthmoving
  • 5 Ton Medium Crawler Hydraulic Excavator for Earthmoving
  • 5 Ton Medium Crawler Hydraulic Excavator for Earthmoving

5 Ton Medium Crawler Hydraulic Excavator for Earthmoving

    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF,EXW,DDP,DDU,CPT,FCA
    Min. Order: 1 Set/Sets
Contact Now

Basic Info

Model No.EX65

BrandWenpeng

Applicable IndustryManufacturing Plant, Energy &Amp; Mining, Building Material Shops, Farms, Machinery Repair Shops, Construction Works

Out-of-warranty ServiceVideo Technical Support, Online Support

Place Of OriginChina

StatusNew

ExerciseCrawler Excavator

Warranty Period1 Year

Engine BrandKubota

Mechanical Test ReportProvided

Video Factory InspectionProvided

Operating Weight6.5Ton

Bucket Capacity0.26m³

Additional Info

PackagingExport wooden box packaging

TransportationOcean,Land

Place of OriginChina

CertificateCE

PortQingdao

Payment TypeL/C,T/T

IncotermFOB,CFR,CIF,EXW,DDP,DDU,CPT,FCA

Product Description

6.5Ton Medium Crawler Hydraulic Excavator For Earthmoving

6.5 Ton Medium Crawler Hydraulic Excavator for Earthmoving Projects

The 6.5 ton medium crawler hydraulic excavator for earthmoving projects combines powerful digging capabilities with excellent operating flexibility and is widely used in construction, mining and infrastructure projects.

Features

  • Excellent Power Performance
    This 6.5 ton medium crawler hydraulic excavator is equipped with an efficient Kubota engine, which provides strong power output, low emissions and is more environmentally friendly.
    Optimized hydraulic system ensures efficient digging and lifting capabilities.
  • Good Stability and Performance
    The durable crawler chassis system provides excellent stability and can adapt to various complex terrains.
    The low center of gravity design enhances the safety and stability of the fuselage.
  • Comfortable Operating Environment
    The spacious cab is equipped with comfortable seats and modern control panels to enhance the operating experience.
    Optimized ventilation and noise reduction design ensure operator's working comfort.
  • High Work Efficiency
    Medium crawler hydraulic excavators have large excavation depth and unloading height to meet a variety of construction needs. The fast-response hydraulic system significantly improves work efficiency.
  • Versatility
    The 6.5 ton medium crawler hydraulic excavator is compatible with a variety of working attachments and can be easily replaced. Such as buckets, grab buckets, clamps, breaker hammers, lawn mowers, etc. to support different operating needs.

Parameters

Model EX-65
Bucket Capacity 0.26m³
Swing Speed 0-11 rpm
Gradeability 35°
Max. Bucket Digging Force 48 kN
Max. Arm Digging Force 35 kN
Engine Model Kubota V2607
Power/Revolution Speed 42.4/2000 (KW/rpm)
System Pressure 28 MPa
Dimension 5940*1880*2570 mm
Cabin Height 2600 mm
Axle Base 1990 mm
Wheel (Track) Distance 1480 mm
Min Ground Clearance 353 mm
Tail Swing Radius 1689 mm
Max. Digging Height 5499 mm
Max. Dumping Height 3845 mm
Max. Digging Depth 3808 mm
Max. Vertical Digging Depth 2983 mm
Max. Digging Radius 6128 mm
Min. Swing Radius 2607 mm

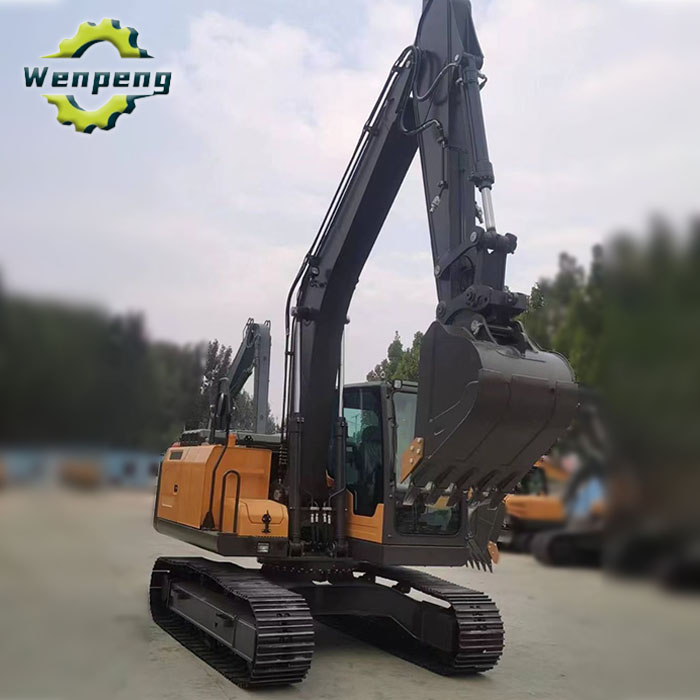

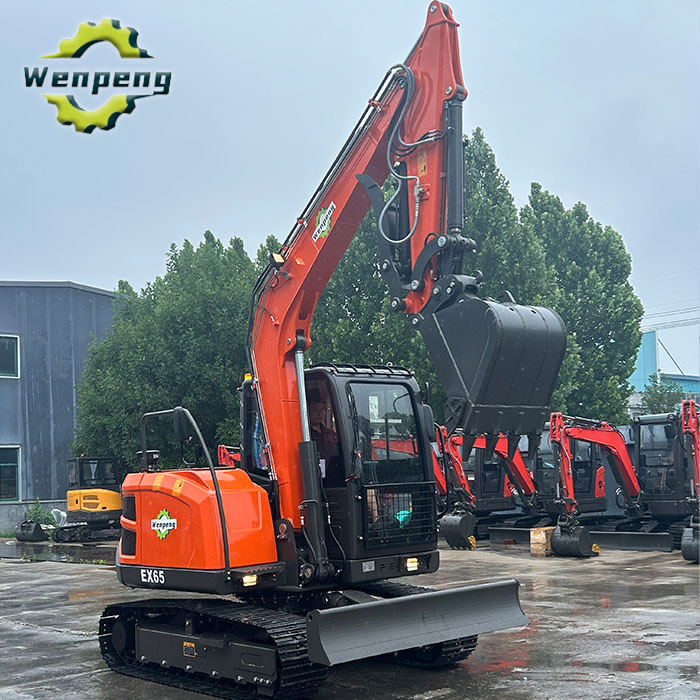

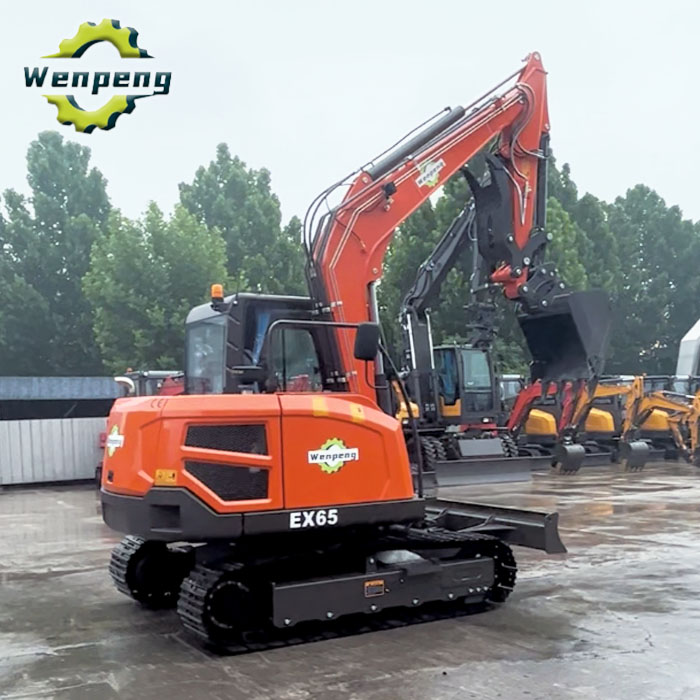

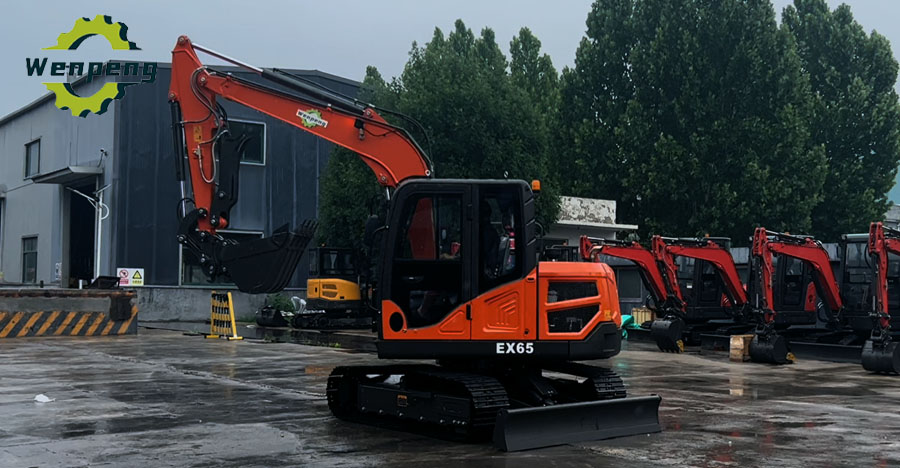

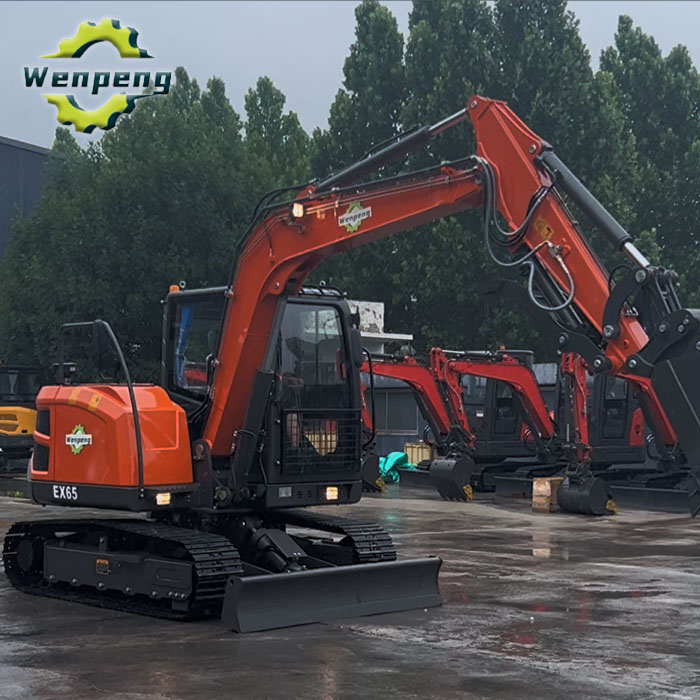

6.5 Ton Medium Crawler Hydraulic Excavator Photo
