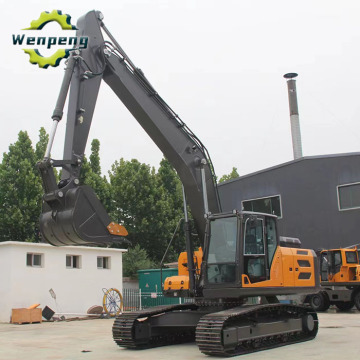

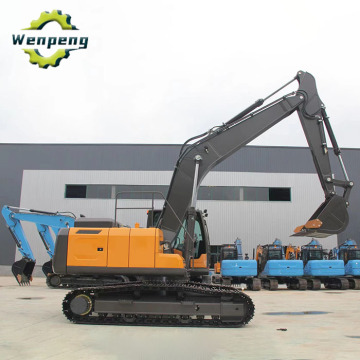

23Ton Crawler Excavator Large Heavy Duty Excavator

Name: 23Ton Large Crawler Excavator For Sale
Uploaded: 2024-12-01T15:06:14+08:00
Description: The 23ton crawler excavator combines excellent excavation performance, excellent stability and enhanced operating

Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW,CPT,DDP,DDU,FCA
Min. Order:	1 Set/Sets

Contact Now

Share to:

Basic Info

Model No.: EX230

Brand: Wenpeng

Applicable Industry: Energy &Amp; Mining, Building Material Shops, Construction Works, Other, Farms

Out-of-warranty Service: Video Technical Support, Online Support

Place Of Origin: China

Status: New

Exercise: Crawler Excavator

Warranty Period: 1 Year

Mechanical Test Report: Provided

Video Factory Inspection: Provided

Operating Weight: 23Ton

Bucket Capacity: 1.1m³

Additional Info

Packaging: Customized export packaging

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 1000sets/month

Certificate: CE

Port: Qingdao

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF,EXW,CPT,DDP,DDU,FCA

Product Description

The 23ton crawler Excavator combines excellent excavation performance, excellent stability and enhanced operating comfort, and is suitable for heavy engineering and large earthwork operations in various harsh environments. Wenpeng Machinery factory direct sales, CE Standard, 1-year warranty. A variety of excavator attachments are also available. Contact us for more details and quotes.

Features

1. Strong power output

The 23 ton crawler excavator uses a powerful diesel engine and is equipped with an advanced hydraulic system to provide efficient excavation capabilities.

The hydraulic system responds quickly to ensure fast and flexible mechanical movements.

2. Excellent overall stability

The crawler large heavy duty excavator is equipped with a wide crawler design and a low center of gravity structure to improve the balance and overturning resistance of the whole machine in complex terrain.

The advanced anti-roll structure greatly improves the safety of the operation.

3. All-round operation convenience

The spacious and comfortable cab with a humanized operating table design improves the operator's work efficiency.

Equipped with high-performance air conditioning and sound insulation system to create a comfortable working environment.

4. Excellent working performance

The large excavation depth and unloading height can cope with various large-scale engineering earthwork operations.

A variety of accessories are available, such as large-capacity bucket rods, etc. to meet different application needs.

Parameters

Model	EX-230
Bucket Capacity	1.1m³
Swing Speed	11-13rmp
Gradeablity	30°
Max. Bucket Digging Force	140KN
Max. Arm Digging Force	99KN
Engine Model	QSB7
Power/Revolution Speed	124/2050(KW/rmp)
System Pressure	34Mpa
Dimension	959029803185mm
Cabin Height	3060mm
Axle Base	3655mm
Wheel(track)Distance	2380mm
Min Ground Clearance	470mm
Tail Swing Radius	2880mm
Max.Digging Height	9410mm
Max.Dumping Height	6730mm
Max.Digging Depth	6480mm
Max. Vertical Digging Depth	5925mm
Max. Digging Radius	9850mm
Min.Swing Radius	3555mm


This 23ton crawler excavator is widely used in the following fields:

1. Mining: suitable for rock mining and mineral recovery operations in large open-pit mines.

2. Infrastructure construction: large crawler excavators can be used for earthwork excavation operations in large highways, railways and water conservancy projects.

3. Municipal engineering: such as large-scale foundation excavation and backfilling operations in urban construction.

4. Environmental governance: site leveling, land reclamation and mining area environmental restoration.

5. Agricultural water conservancy: 23-ton crawler excavators can be used for water conservancy facilities construction, such as dams, channels and other projects.
