Basic Info
Model No.: EX12
Brand: Wenpeng
Applicable Industry: Building Material Shops, Manufacturing Plant, Home Use, Farms, Construction Works, Energy &Amp; Mining, Machinery Repair Shops
Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Place Of Origin: China
Status: New
Exercise: Crawler Excavator
Operating Weight: 1.3Ton
Bucket Capacity: 0.025m³
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Algeria, Chile, Indonesia, India, Mexico, Russia, Thailand, Malaysia, Philippines, Spain
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Chile, Indonesia, Algeria, Russia, Mexico
Additional Info
Packaging: Export wooden box packaging
Transportation: Ocean,Land
Place of Origin: China
Certificate: CE/Euro 5
Port: QingDao
Payment Type: T/T,L/C
Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,DDP,DDU
Product Description

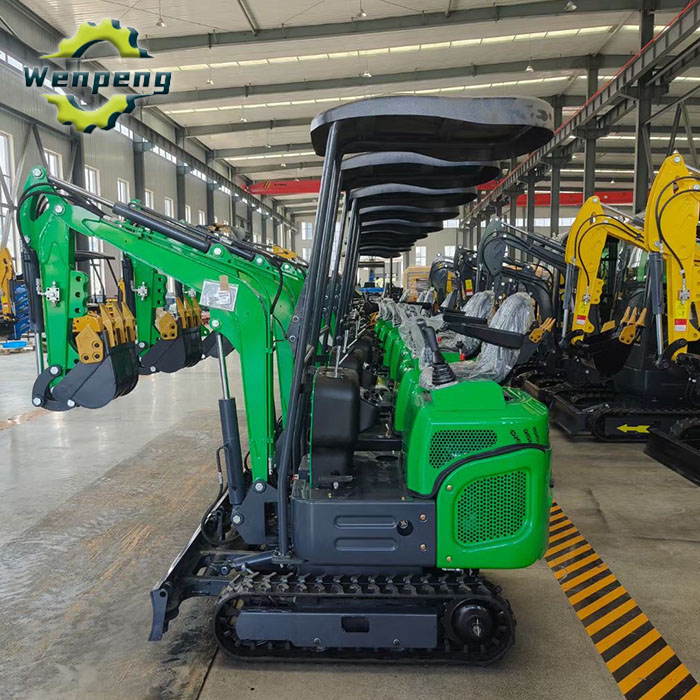

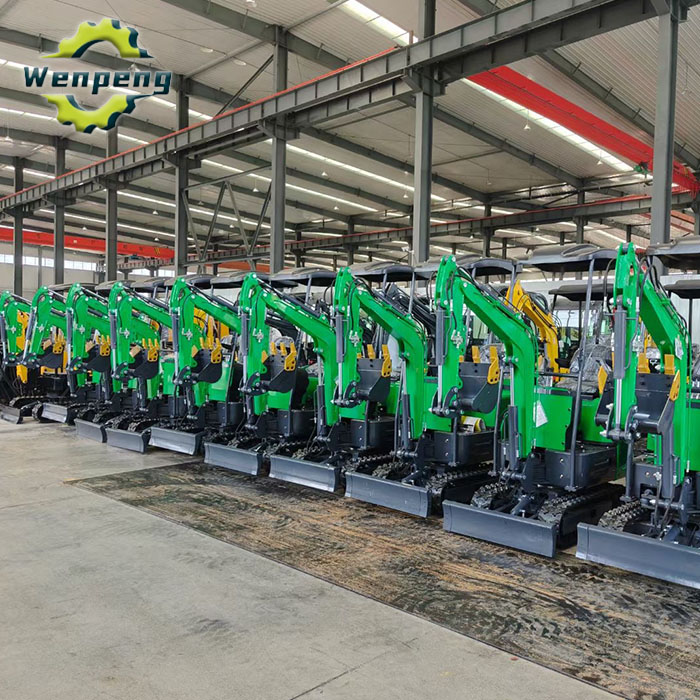

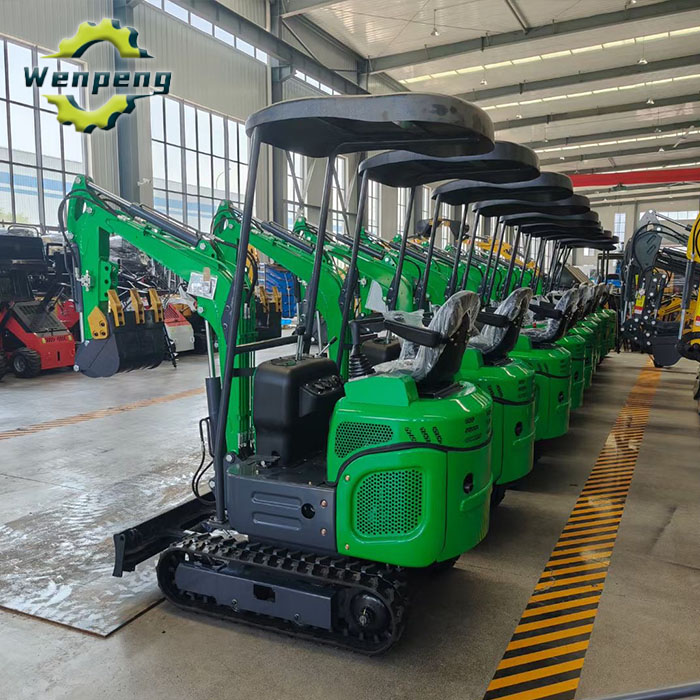

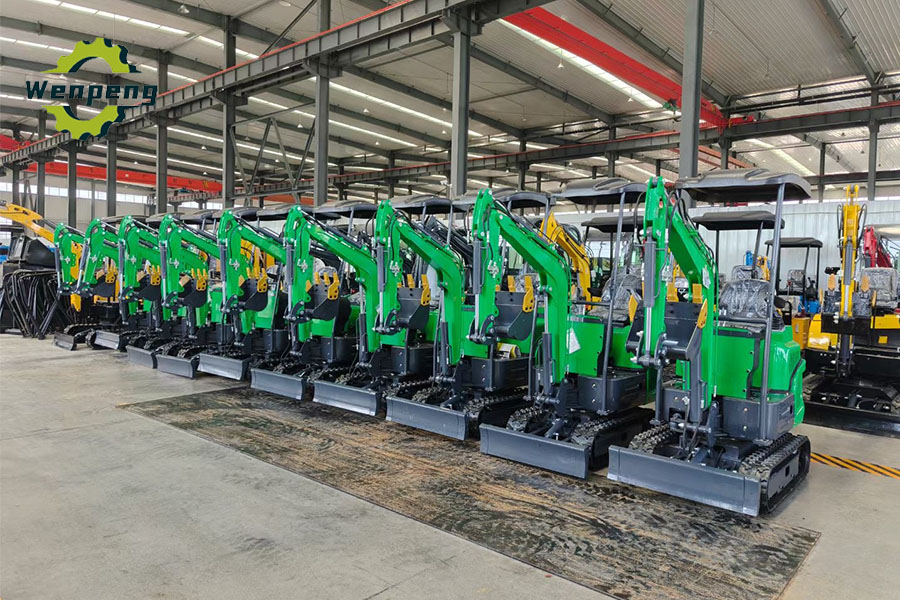

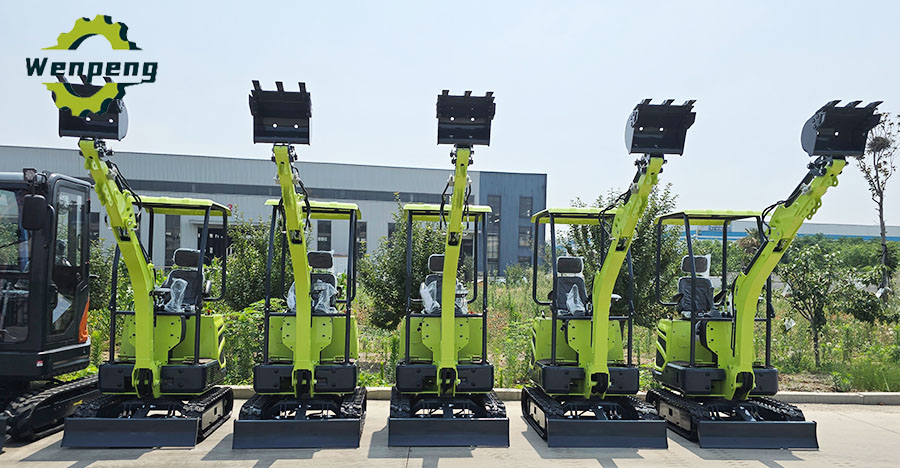

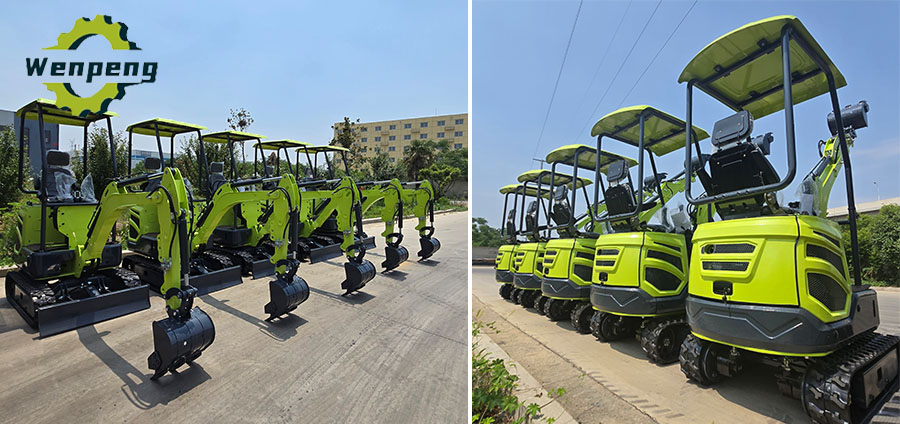

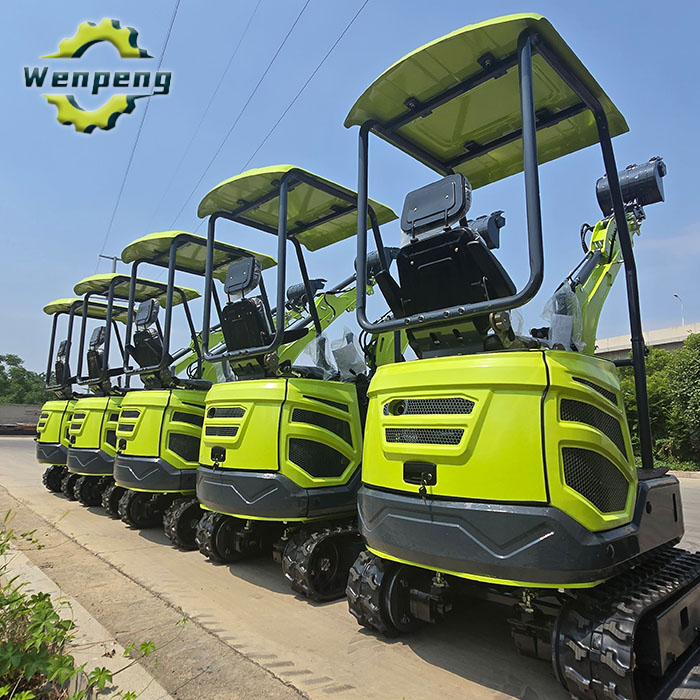

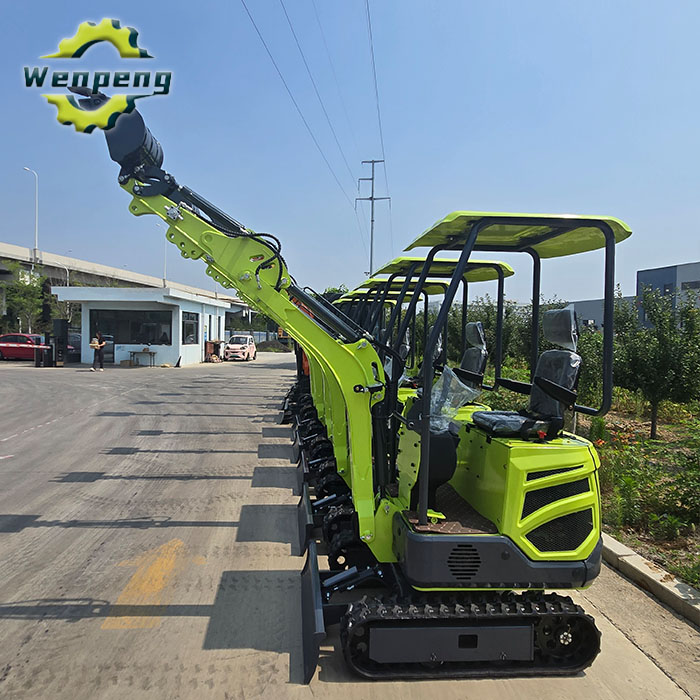

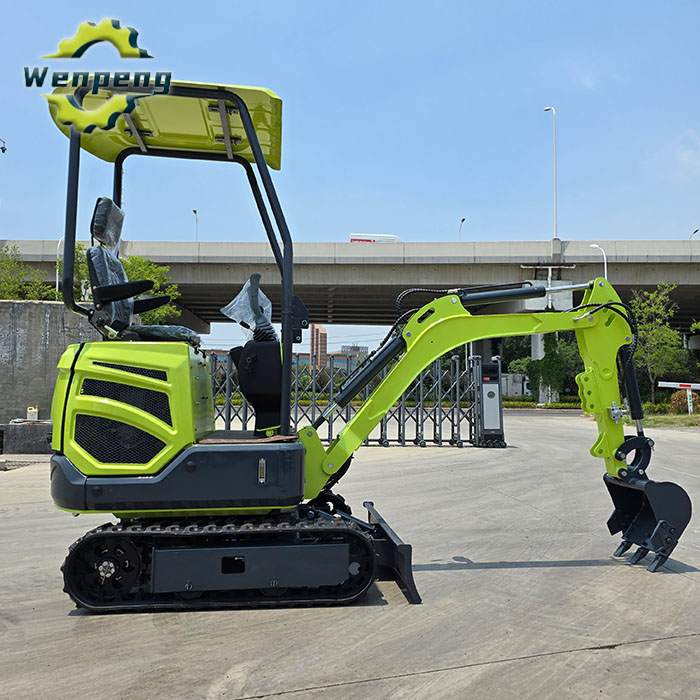

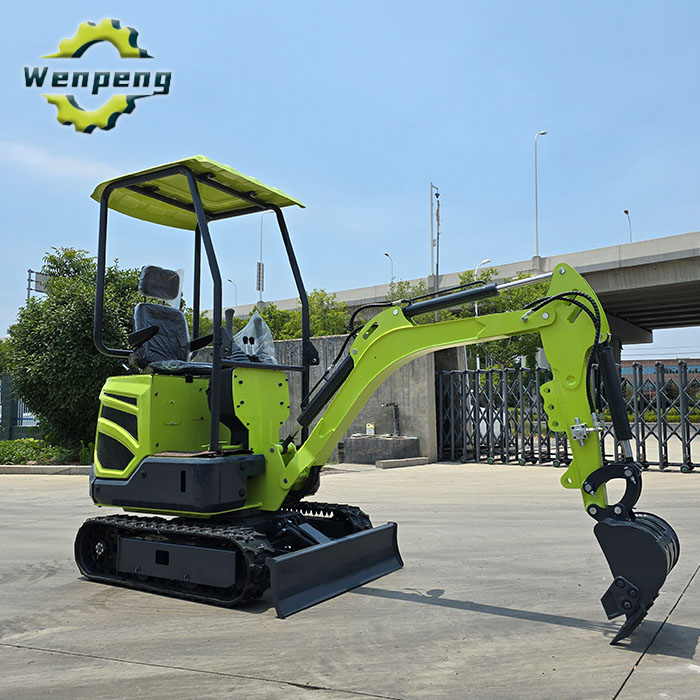

The 1.3-ton hydraulic mini excavator, model EX-13, meets Euro 5 emission standards and is designed for cities and small construction sites. The hydraulic mini excavator combines an efficient power system with excellent control performance and is suitable for various light excavation operations.
Wenpeng Machinery supplies a variety of excavators including mini excavators, medium excavators, large excavators, wheeled excavators, etc. At the same time, the excavator is designed with detachable attachments that can be replaced according to different operation requirements, such as mowers, breakers, grab hooks, forks, etc.
| Model | EX-13 |
|---|---|
| Bucket Capacity | 0.025m³ |
| Swing Speed | 0-13 rpm |
| Gradeability | 30° |
| Max. Bucket Digging Force | 7.5 kN |
| Max. Arm Digging Force | 4.8 kN |
| Engine Model | Koop Euro5 |
| Power/Revolution Speed | 7 kW / 13.5 HP |
| System Pressure | 18 MPa |
| Dimension | 2900 * 1100 * 1550 mm |
| Cabin Height | 1550 mm |
| Axle Base | 900 mm |
| Wheel (Track) Distance | 600 mm |
| Min Ground Clearance | 140 mm |
| Tail Swing Radius | 600 mm |
| Max. Digging Height | 2950 mm |
| Max. Dumping Height | 1750 mm |
| Max. Digging Depth | 1650 mm |
| Max. Vertical Digging Depth | 1600 mm |
| Max. Digging Radius | 2900 mm |
| Min. Swing Radius | 1350 mm |
