| Payment Type: | L/C,T/T |
|---|---|
| Incoterm: | FOB,CFR,CIF,EXW |
| Min. Order: | 1 Set/Sets |
Basic Info
Model No.: EX990
Brand: Wenpeng
Applicable Industry: Building Material Shops, Machinery Repair Shops, Farms, Construction Works, Energy &Amp; Mining, Other
Out-of-warranty Service: Video Technical Support, Online Support
Place Of Origin: China
Status: New
Exercise: Crawler Excavator
Warranty Period: 1 Year
Mechanical Test Report: Provided
Video Factory Inspection: Provided
Operating Mass: 98T
Bucket Capacity: 6.5-8m³
Additional Info
Productivity: 100sets/month
Transportation: Ocean,Land
Place of Origin: China
Supply Ability: 100sets/month
Certificate: CE
Port: Qingdao
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Product Description

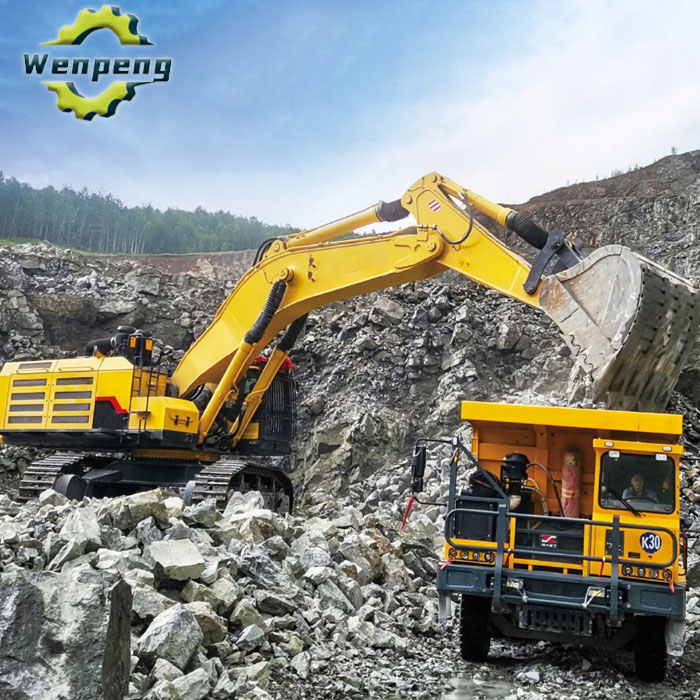

| Model | EX990 |
| Engine model | Scania DC16 |
| Working mass | 98T |
| Bucket capacity | 6.5-8m³ |
| Power | 574/2000kw/r/min |
| Volume of fuel tank | 1300L |
| Travel speed (High/Low) | 3.53/2.4 km/h |
| Swing speed | 6.5 r/min |
| Gradeability | 35 |
| Digging force of bucket | 514KN |
| Digging force of stick | 437KN |
| Specific pressure of ground contact | 131Kpa |
| Traction | 714KN |
| Maximum flow | 550*2 L/min |
| Working pressure | 34.3/37Mpa |
| Volume of hydraulic fluid tank | 1090L |
| A-Overall length | 13870mm |
| B-Overall Width | 4451mm |
| C-Overall height(tope of boom) | 5347mm |
| D-Overall height(tope of cab) | 3920mm |
| E-Gap from counterweight to ground | 1728mm |
| F-Min ground clearance | 940mm |
| G-Tail swing radius | 4711mm |
| H-Length of track on ground | 5200mm |
| J-Track length | 6445mm |
| K-Gauge | 3510/2940mm |
| L-Width of track | 4160/3590mm |
| M-Width of track shoe | 650mm |
| N-Width of turning table | 3485mm |
| O-Max. digging height | 12670mm |
| P-Max. dumping height | 8345mm |
| Q-Max. digging depth | 6956mm |
| T-Max. digging distance | 12560mm |
| U-Max. digging distance at plane | 12180mm |
| V-Min. swing radius | 5612mm |
| W-Max height at min swing radius | 10686mm |
| X-Distance from center of swing to rear end | 4271mm |
| Y-Thickness of track grouses | 50mm |
| Z-Height of counterweight | 3750mm |
| Ground Contact length (in transportation) | 8905mm |
| Length of stick | 2930mm |
| Length of boom | 7250mm |
