| Payment Type: | L/C,T/T |
|---|---|
| Incoterm: | FOB,CFR,CIF,EXW |
| Min. Order: | 1 Set/Sets |
Basic Info
Model No.: EX330
Brand: Wenpeng
Applicable Industry: Other, Energy &Amp; Mining, Construction Works, Machinery Repair Shops, Building Material Shops
Out-of-warranty Service: Video Technical Support, Online Support
Place Of Origin: China
Status: New
Exercise: Crawler Excavator
Warranty Period: 1 Year
Engine Brand: Cummins
Mechanical Test Report: Provided
Video Factory Inspection: Provided
Operating Mass: 33Ton
Bucket Capacity: 1.4m³
Additional Info
Productivity: 100sets/month
Transportation: Ocean,Land
Place of Origin: China
Supply Ability: 100sets/month
Certificate: CE
Port: Qingdao
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Product Description

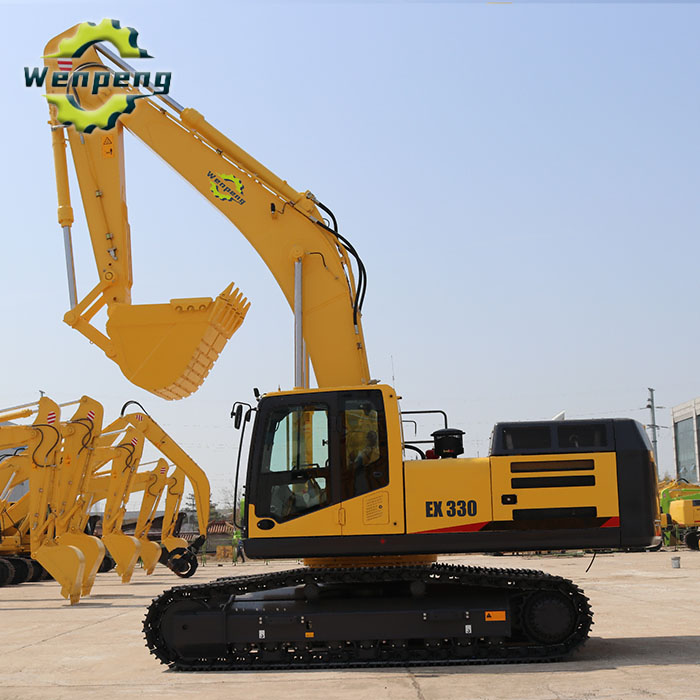

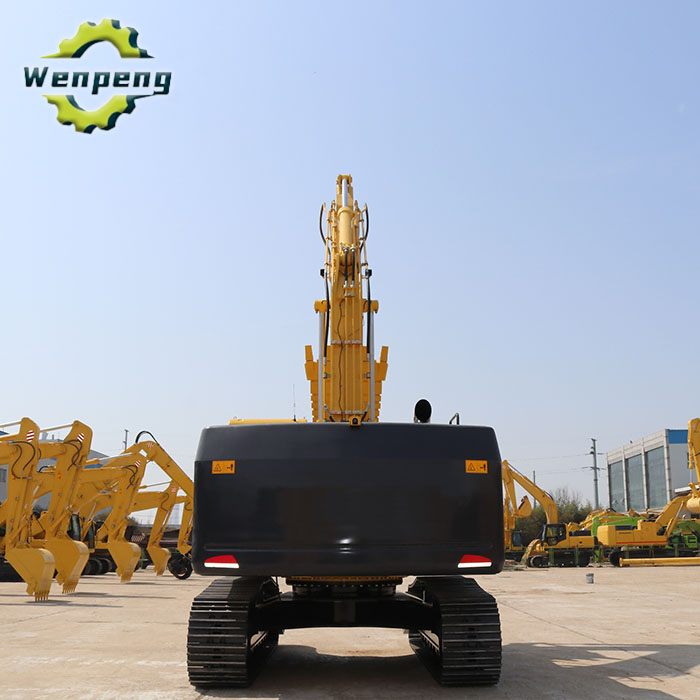

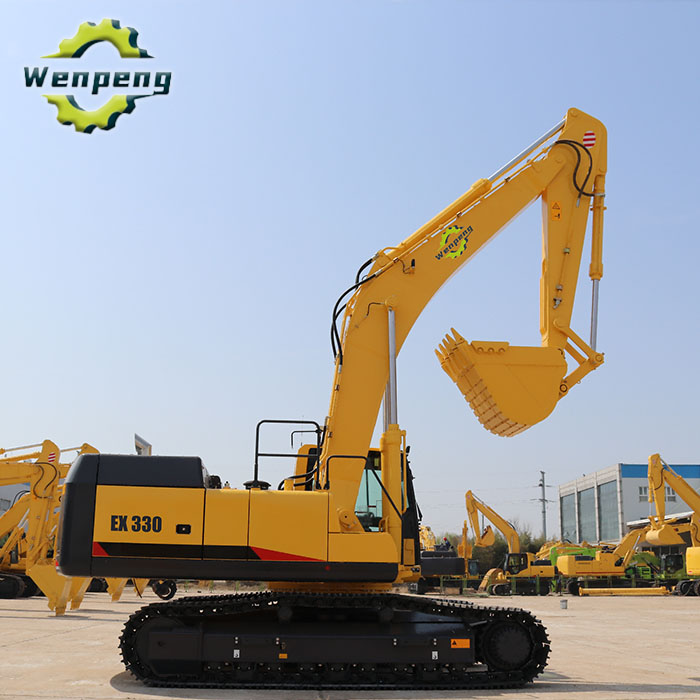

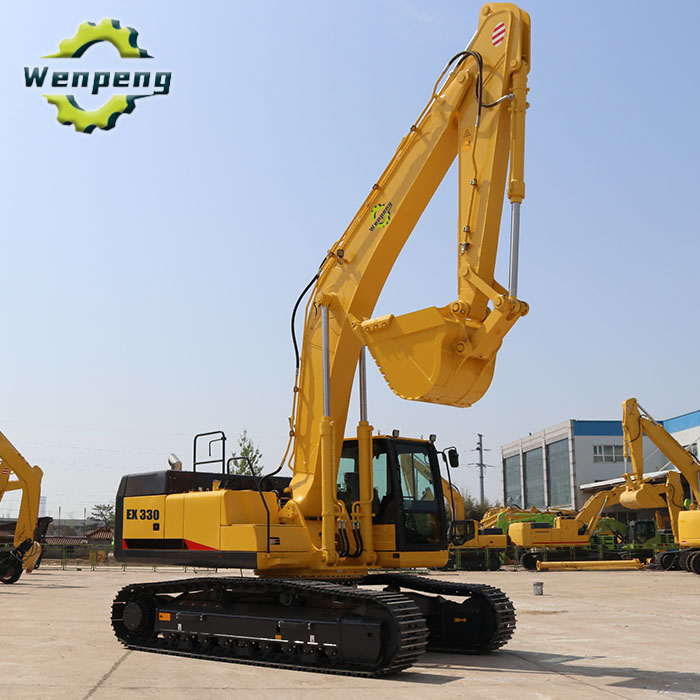

Wenpeng Machinery Factory supplies a 33-ton large hydraulic crawler excavator equipped with a Cummins engine, which is designed for heavy earthwork and large construction projects. It has strong power and excellent operating performance, making it an ideal choice for various complex construction environments.
| Model | EX330 |
|---|---|
| Engine model | Cummins 6CTAA8.3 |
| Working mass | 33T |
| Bucket capacity | 1.4m³ |
| Power | 194/2000 kw/r/min |
| Volume of fuel tank | 595L |
| Travel speed (High/Low) | 5.9/3.4 km/h |
| Swing speed | 9.4 r/min |
| Gradeability | 35° |
| Digging force of bucket | 179KN |
| Digging force of stick | 145KN |
| Specific pressure of ground contact | 65.1Kpa |
| Traction | 300KN |
| Maximum flow | 265*2+30 L/min |
| Working pressure | 34.3Mpa |
| Volume of hydraulic fluid tank | 310L |
| A-Overall length | 10882mm |
| B-Overall Width | 3190mm |
| C-Overall height(tope of boom) | 3310mm |
| D-Overall height(tope of cab) | 3280mm |
| E-Gap from counterweight to ground | 1210mm |
| F-Min ground clearance | 523mm |
| G-Tail swing radius | 3418mm |
| H-Length of track on ground | 4030mm |
| J-Track length | 4957mm |
| K-Gauge | 2590mm |
| L-Width of track | 3190mm |
| M-Width of track shoe | 600mm |
| N-Width of turning table | 2995mm |
| O-Max. digging height | 9960mm |
| P-Max. dumping height | 6983mm |
| Q-Max. digging depth | 6993mm |
| T-Max. digging distance | 10728mm |
| U-Max. digging distance at plane | 10530mm |
| Min. swing radius | 4280mm |
| Max height at min swing radius | 8387mm |
| Distance from center of swing to rear end | 3418mm |
| Y-Thickness of track grouses | 26mm |
| Height of counterweight | 2274mm |
| Ground Contact length (in transportation) | 5940mm |
| Length of stick | 3050mm |
| Length of boom | 6250mm |
