Basic Info
Model No.: EX80
Brand: Wenpeng
Applicable Industry: Building Material Shops, Manufacturing Plant, Farms, Construction Works, Energy &Amp; Mining, Other
Out-of-warranty Service: Video Technical Support, Online Support
Place Of Origin: China
Status: New
Exercise: Crawler Excavator
Warranty Period: 1 Year
Engine Brand: Yanmar
Mechanical Test Report: Provided
Video Factory Inspection: Provided
Working Mass: 8.18T
Bucket Capacity: 0.34-0.4m³
Additional Info
Packaging: Export wooden box packaging
Transportation: Ocean,Land
Place of Origin: China
Supply Ability: 1000sets/month
Certificate: CE
Port: Qingdao
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Product Description

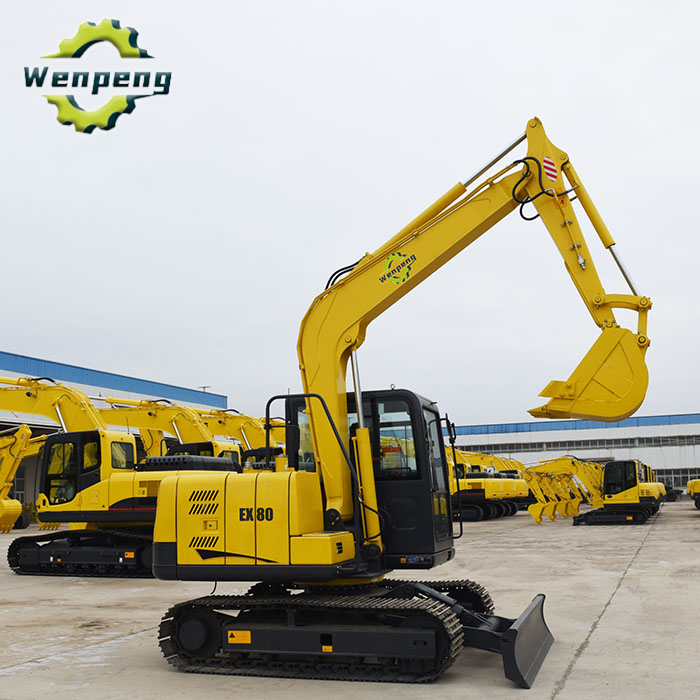

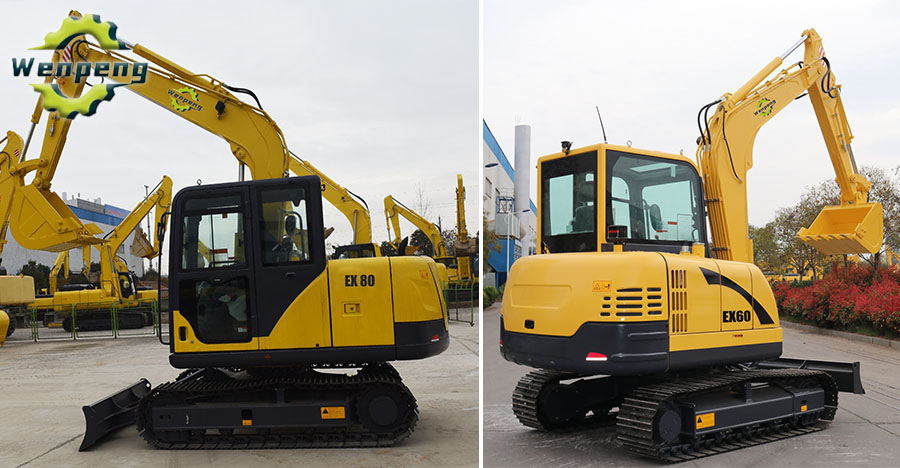

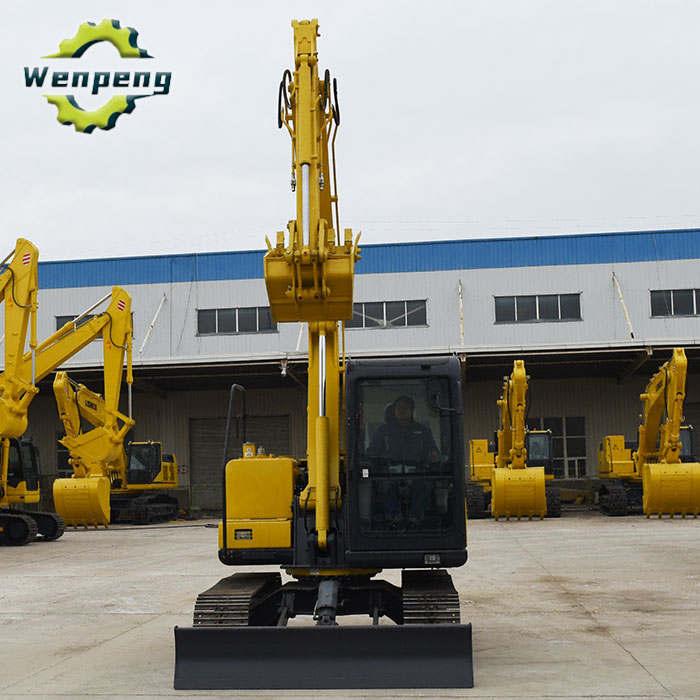

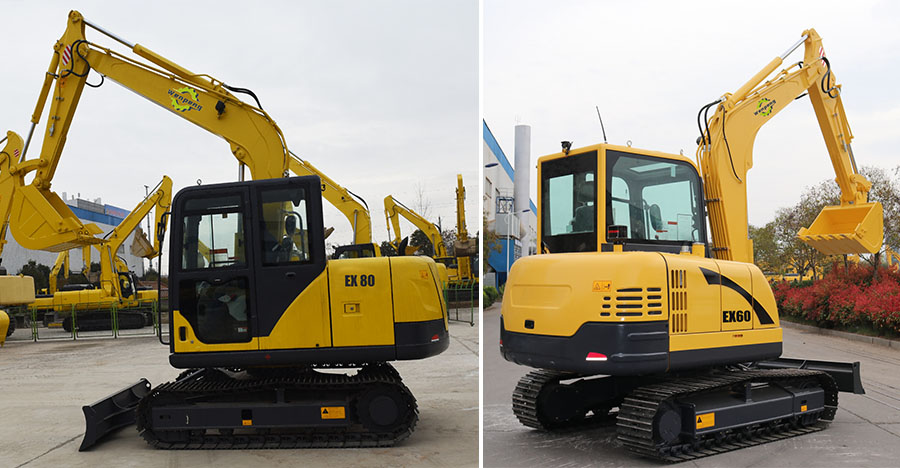

| Model | EX80 |
| Engine model | Yanmar 4TNV98T-ZCSTY |
| Working mass | 8.18T |
| Bucket capacity(SAE) | 0.34-0.4m³ |
| Power | 54.3/2200kw/r/min |
| Volume of fuel tank | 130L |
| Travel speed (High/Low) | 5.1/2.7 km/h |
| Swing speed | 11.2 r/min |
| Gradeability | 35° |
| Digging force of bucket | 52.7KN |
| Digging force of stick | 40.5KN |
| Specific pressure of ground contact | 30Kpa |
| Traction | 59 |
| Maximum flow | 167L/min |
| Working pressure | 27.5Mpa |
| Volume of hydraulic fluid tank | 86L |
| A-Overall length | 6103mm |
| B-Overall Width | 2260mm |
| C-Overall height(tope of boom) | 2515mm |
| D-Overall height(tope of cab) | 2630mm |
| E-Gap from counterweight to ground | 760mm |
| F-Min ground clearance | 381.5mm |
| G-Tail swing radius | 1755mm |
| H-Length of track on ground | 2130mm |
| J-Track length | 2757mm |
| K-Gauge | 1700mm |
| L-Width of track | 2150mm |
| M-Width of track shoe | 450mm |
| N-Width of turning table | 2198mm |
| O-Max. digging height | 7165mm |
| P-Max. dumping height | 5068mm |
| Q-Max. digging depth | 4038mm |
| T-Max. digging distance | 6333mm |
| U-Max. digging distance at plane | 6182mm |
| Min. swing radius | 1792mm |
| Max height at min swing radius | 5496mm |
| Distance from center of swing to rear end | 1800mm |
| Y-Thickness of track grouses | 26mm |
| Height of counterweight | 1005mm |
| Ground Contact length (in transportation) | 3696mm |
| Length of stick | 1650mm |
| Length of boom | 3710mm |
