| Payment Type: | L/C,T/T |
|---|---|
| Incoterm: | FOB,CFR,CIF,EXW |
| Min. Order: | 1 Set/Sets |
Basic Info

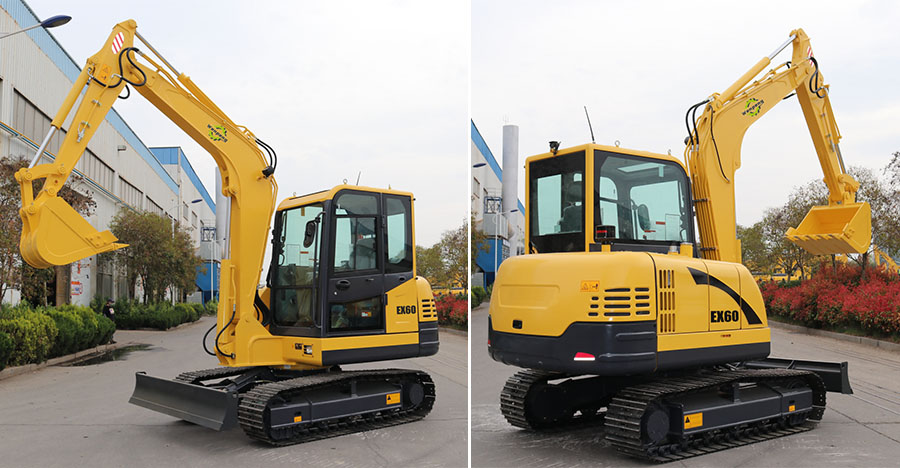

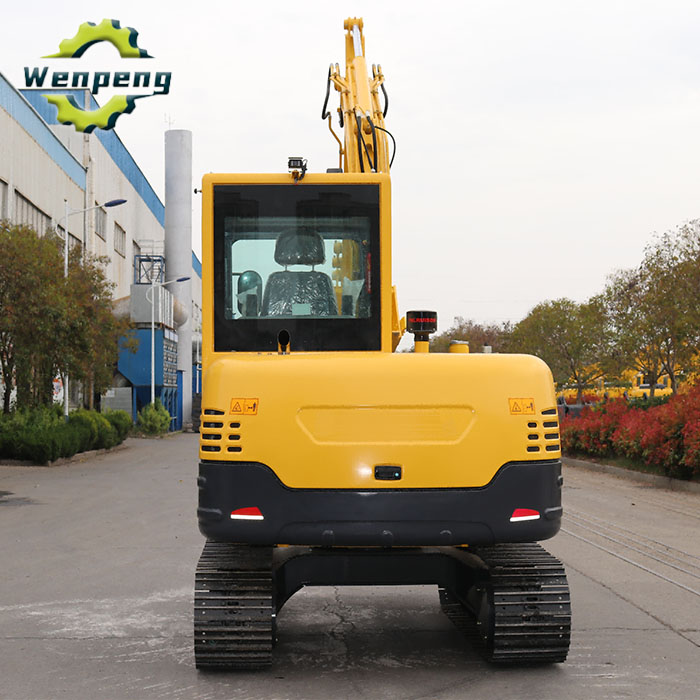

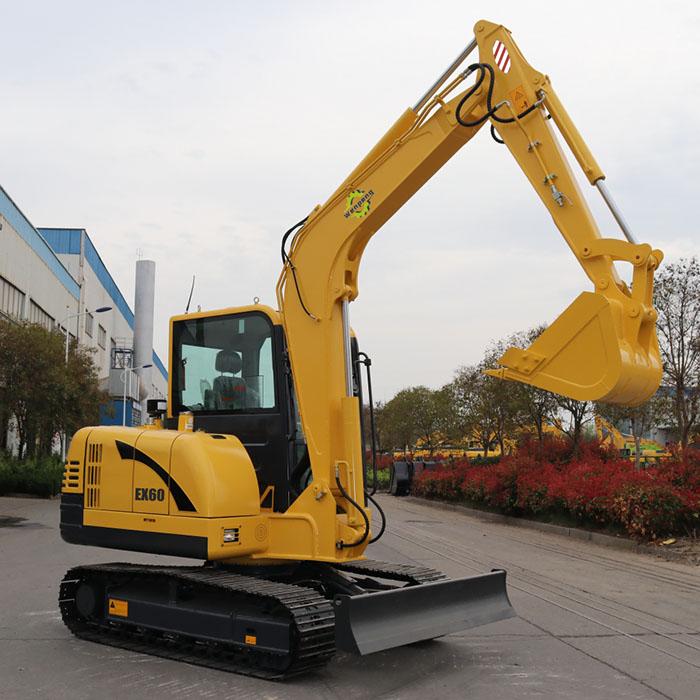

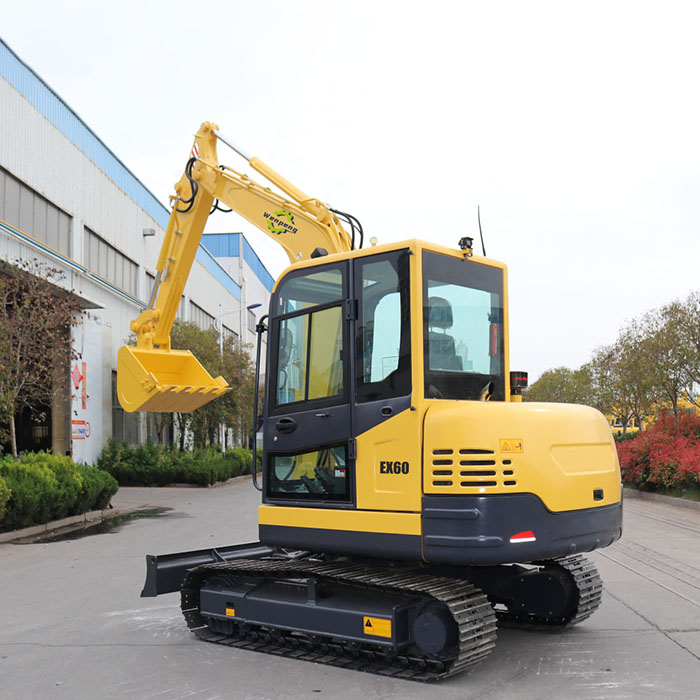

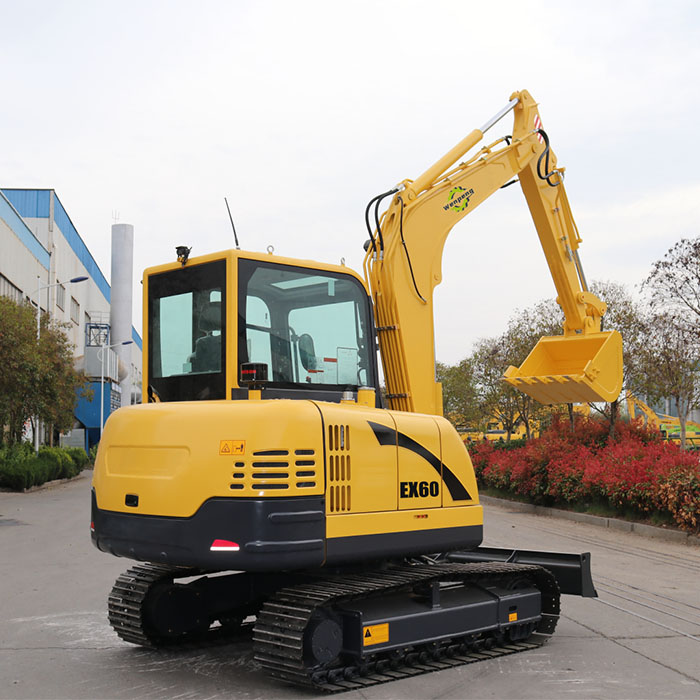

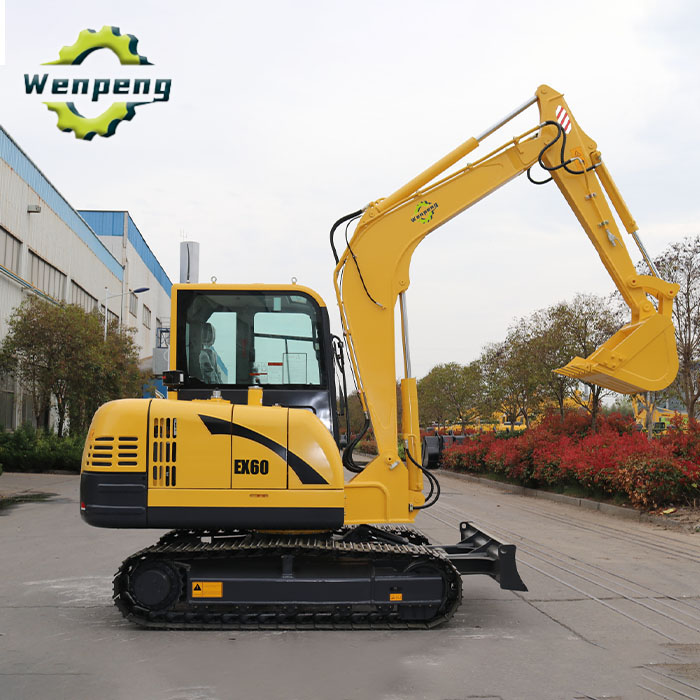

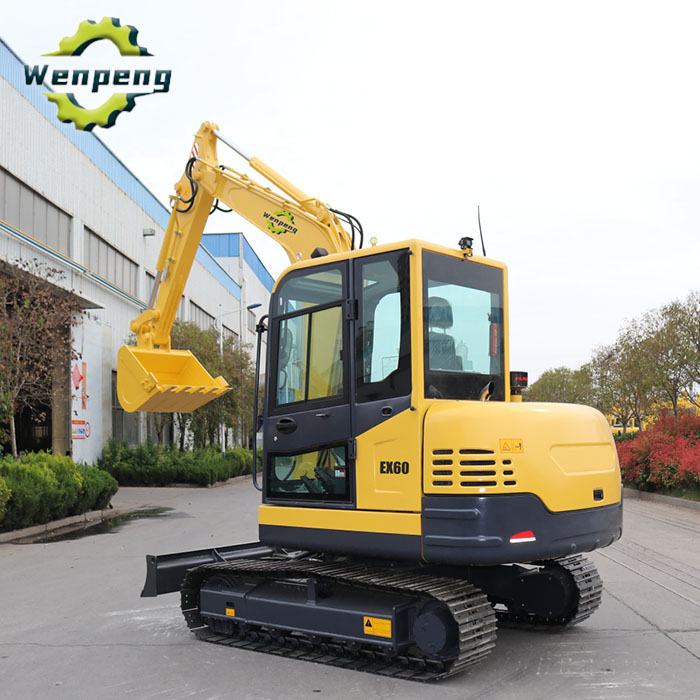

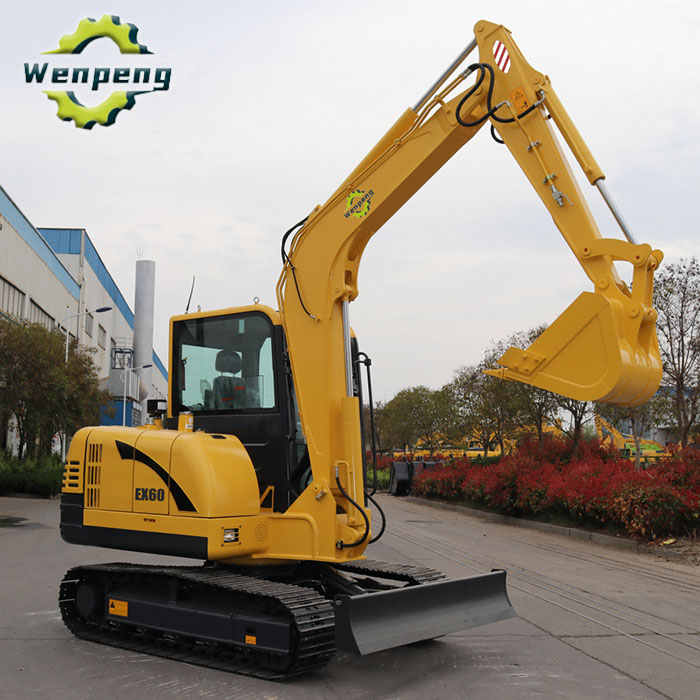

Model No.: EX60
Brand: Wenpeng
Applicable Industry: Manufacturing Plant, Building Material Shops, Farms, Construction Works, Energy &Amp; Mining, Other
Out-of-warranty Service: Video Technical Support, Online Support
Place Of Origin: China
Status: New
Exercise: Crawler Excavator
Warranty Period: 1 Year
Engine Brand: Yanmar
Mechanical Test Report: Provided
Video Factory Inspection: Provided
Working Mass: 6.05T
Bucket Capacity(SAE): 0.22-0.28 m³
Additional Info
Packaging: Export Packaging
Transportation: Ocean,Land
Place of Origin: China
Supply Ability: 1000sets/month
Certificate: CE
Port: Qingdao
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Product Description
| Model | EX60 |
| Engine model | Yanmar 4TNV94L-BVTY2C |
| Working mass | 6.05T |
| Bucket capacity(SAE) | 0.22-0.28m³ |
| Power | 36.2/2100kw/r/min |
| Volume of fuel tank | 100L |
| Travel speed (High/Low) | 4.2/2.2km/h |
| Swing speed | 9.5 r/min |
| Gradeability | 30° |
| Digging force of bucket | 38.5KN |
| Digging force of stick | 24.3KN |
| Specific pressure of ground contact | 36.1Kpa |
| Traction | 55 |
| Maximum flow | 160L/min |
| Working pressure | 32Mpa |
| Volume of hydraulic fluid tank | 80L |
| A-Overall length | 5960mm |
| B-Overall Width | 1960mm |
| C-Overall height(tope of boom) | 1995mm |
| D-Overall height(tope of cab) | 2690mm |
| E-Gap from counterweight to ground | 700mm |
| F-Min ground clearance | 360mm |
| G-Tail swing radius | 1700mm |
| H-Length of track on ground | 2000mm |
| J-Track length | 2560mm |
| K-Gauge | 1560mm |
| L-Width of track | 1960mm |
| M-Width of track shoe | 400mm |
| N-Width of turning table | 1906mm |
| O-Max. digging height | 5750mm |
| P-Max. dumping height | 3980mm |
| Q-Max. digging depth | 3860mm |
| T-Max. digging distance | 6170mm |
| U-Max. digging distance at plane | 6045mm |
| Min. swing radius | 2380mm |
| Max height at min swing radius | 4395mm |
| Distance from center of swing to rear end | 1700mm |
| Y-Thickness of track grouses | 14mm |
| Height of counterweight | 1685mm |
| Ground Contact length (in transportation) | 3370mm |
| Length of stick | 1630mm |
| Length of boom | 3000mm |
