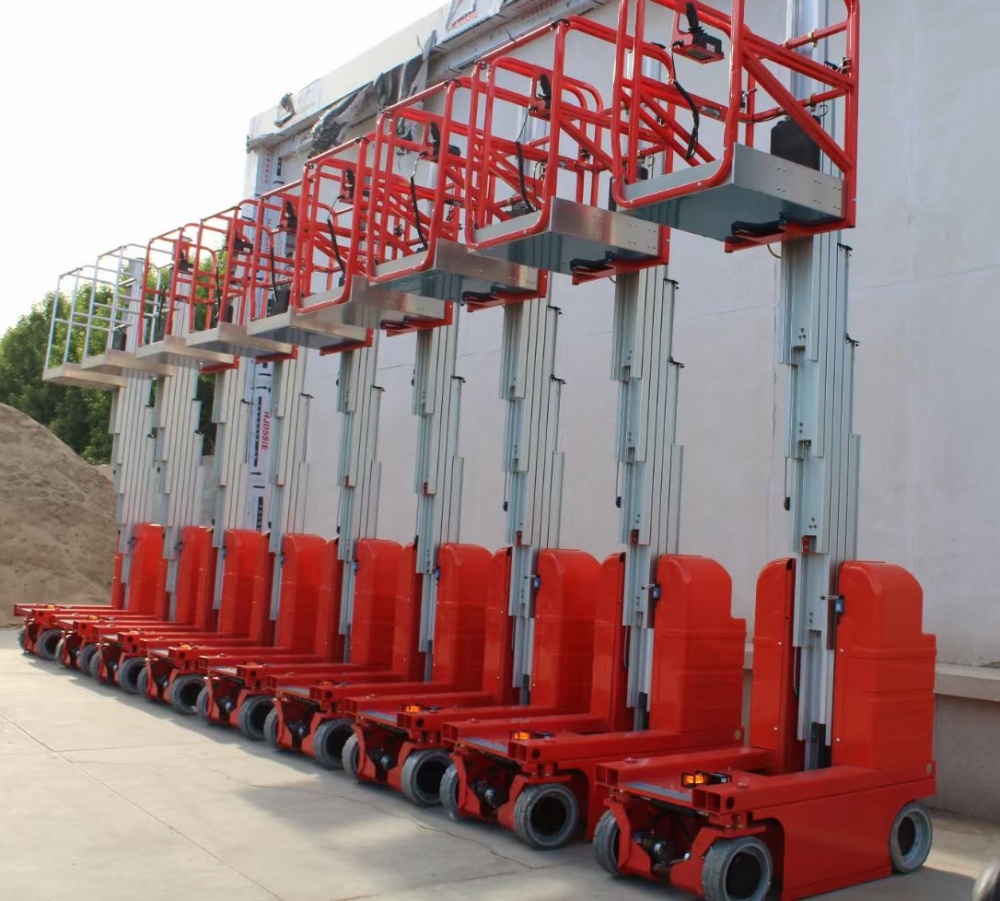

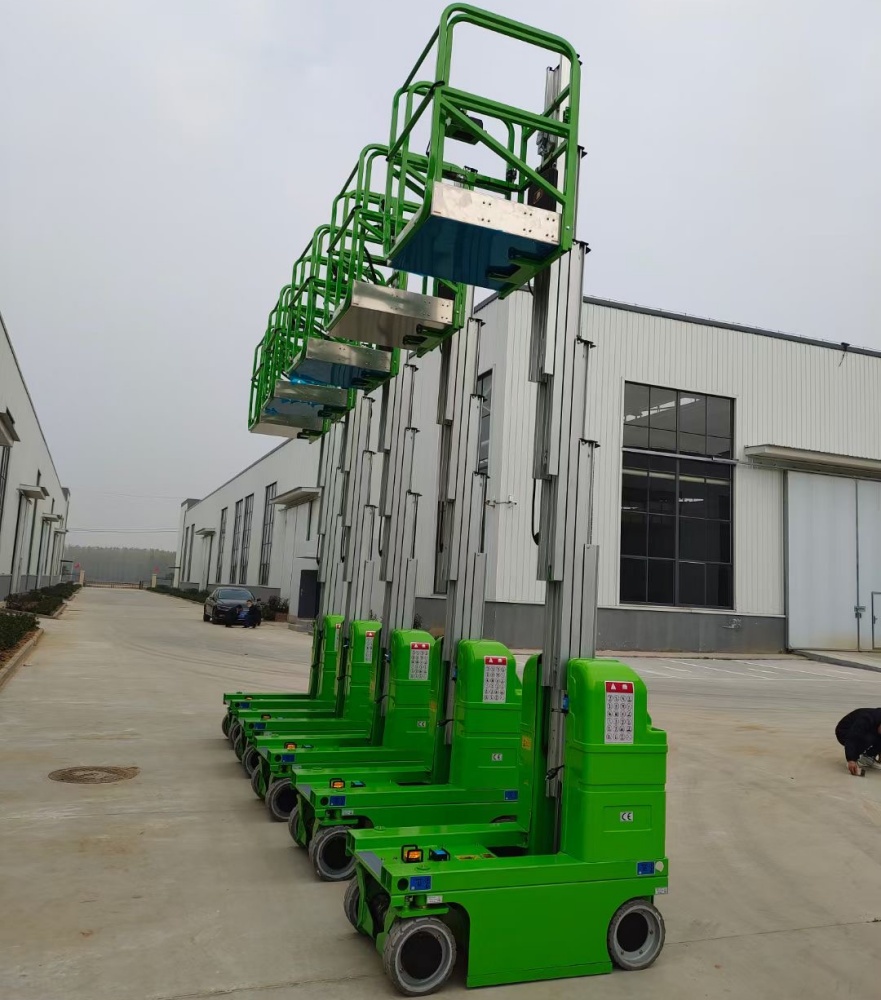

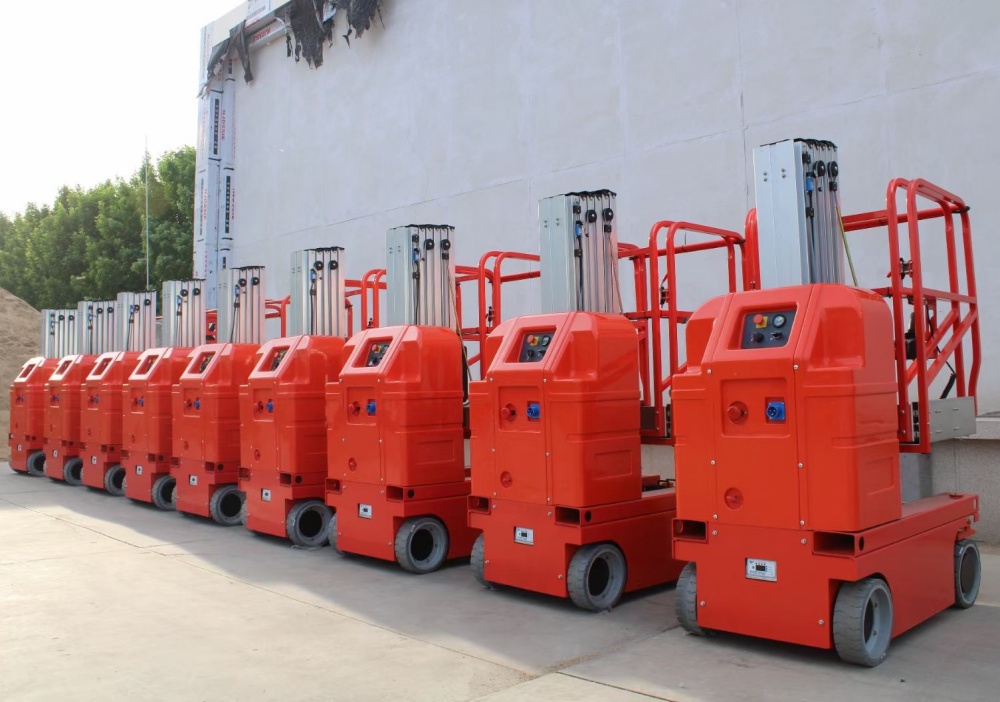

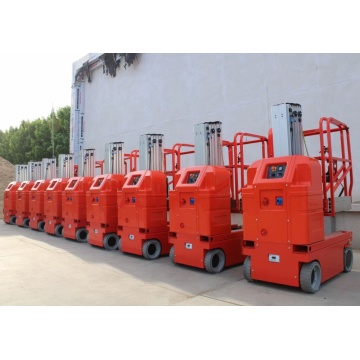

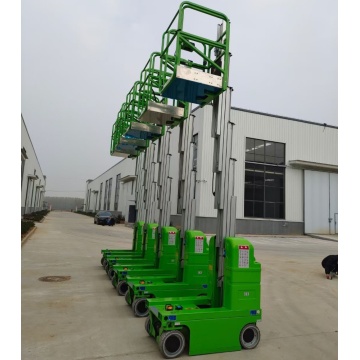

Single Mast 8m Self-propelled Aluminum Vertical Lift

Name: Single Mast 8m Self-propelled Aluminum Vertical Lift
Brand: SUZHOU WENPENG MACHINE TECHNICAL CO.,LTD.
Rating: 4.5 (24 reviews)

Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW
Min. Order:	1 Piece/Pieces

Contact Now

Share to:

Basic Info

Model No.: WP-AS06

Brand: Wenpeng

Warranty Service: 1 Year

After-sales Service: Online Technical Support, Onsite Training, Onsite Inspection, Free Spare Parts, Onsite Installation

Place Of Origin: China

Additional Info

Packaging: exported packing

Productivity: 1000 pcs/month

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 1000 pcs/ month

Certificate: CE/ISO

HS Code: 8428909090

Port: QINGDAO

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF,EXW

Product Description

Wenpeng Machinery factory supplies a CE-compliant single mast self propelled aluminum vertical lift, model WP-AS06, with a working height of 8m and a lifting load of 150kg.

Product details are as follows:

1.Introduction:

A. Vertical aluminum Lifts are made up of high grade aluminum profile.

B. It is mainly used for the installation and maintenance of the narrow spaces such as star hotels,modern workshops,business hall,hotels,lobby,restaurant,railway stations, exhibition hall and shopping malls.

C.The lifting height ranges from 1.2m to 8m and lifting capacity varies about 117kg.The power sources could be 110,220V,380V or chargeable battery.

D.The control panels are available both on the lift platforms and the ground.

2.Advantages:

A.The Lift is light weight, good flexibility, and suitable for two people to operate.

B. Beautiful structure, light weight.

C.Compact structure, small size transport state, can enter narrow and small area.

D.Safety protection device and imported pump, increases the service life and safety assurance.

3.Safety precautions:

A. Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.

B. Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.

C. Emergency decline valve: it can go down when you meet an emergency.

4.Power Supply & Applicable place:

A. Electric Powered / AC powered

· When the electricity is available at work place, usually for Indoor use

· No noise and air pollution.

B. Battery Powered / DC powered

· When the electricity is not available at work place, usually for Outdoor use

· No noise and air pollution.

Parameters

MODEL	AS06
Max.Working Height	8.00m
Max. Platform Height	6.00m
Loading Capacity	150kg
Occupants	1
Overall Length	1.40m
Overall Width	0.76m
Overall Height	1.99m
Platform Dimension	0.66mx0.67m
Wheel Base	1.07m
Turning Radius	0.3m
Travel Speed(Stowed)	3.5km/h
Travel Speed(Raised)	0.8km/h
Up/Down Speed	48/40sec
Gradeability	25%
Drive Tyres	Φ305x100mm
Drive Motors	2X24VDC/0.5kW
Lifting Motor	24VDC/1.2kW
Battery	2X12V/100Ah
Charger	24V/15A
Weight	1120kg
