1. Rotary tillage
Power: 32 horsepower engine, 36 horsepower
Gears: 3 forward + 1 reverse
Remote control distance: 100 meters
Dimensions (including Rotary Tiller in cm)
Length*width*height: 290*110*100
Rubber track: 230*72*43
The main technical parameters
Form: rotary knife
Working width: 1.2 meters
Rotary tillage depth: 10-15CM
Tool magazine speed: 350 rpm
The remote control operation system is adopted, which is safe and convenient to use, and the structure of the whole machine is compact. It can be turned in place, has strong passing performance and strong climbing ability, and is especially suitable for orchards, greenhouses and hillside operations.
2. Spraying work
Air-delivered test sprayer, good atomization effect and long spray distance
Remote control operation, separation of man and machine to ensure the safety of operators and avoid drug injury.
The main technical parameters
Form: air blowing spray
Spray radius: 5-6 meters
Medicine box volume: 320 liters
Overall size: 270*120*100CM
3. Ditching work
Rotary knife ditching, standardized tool, suitable for non-cohesive soil, general soil ditching, high efficiency and less residue at the bottom of the ditch.
The main technical parameters:
Form: rotary knife
Ditching depth: 0-25CM
Ditching width: 25CM
Working efficiency: 400-450 m/h
Cutter speed: 350 rpm
Machine size: 270*110/85 (ditching width)*95CM
4. Grass work
The high-speed vertical-knife mowing device is suitable for cutting and crushing various types of weeds or planting grass, leaving the stubble flat.
The main technical parameters:
Form: vertical knife
Stubble height: 5-10CM
Grass width: 120CM
Cutter speed: 1500 rpm
Dimensions: 245*110*95CM
5. Transportation platform
It is used for orchard material transportation and fruit transportation, solving manual transportation, improving efficiency and reducing labor.
The main technical parameters:
Format: Shipping Platform
Plate area 120CM*124CM
Height from the ground: 110CM (plate height) 180CM (fence height)
Flat driving load 500KG
6. Ridging work
The ridge-raising device is mounted behind the rotary tiller to realize ridge-raising under the cooperation of the rotary tillage operation, which is suitable for the planting requirements of orchard and greenhouse vegetables.
The main technical parameters:
Ridge height: 20CM
Ridge bottom mouth: 70CM
Ridge to mouth: 40CM
7. Fertilization operation
The integrated operation of trenching, fertilization and mulching, the amount of fertilization and the depth of fertilization can be adjusted, especially suitable for the application of granular or powdered fertilizers.
The main technical parameters:
Form: ditching, fertilizing and covering in one
Tank volume: 120L
Fertilization depth: 10-25CM
Discharge port center distance: 53CM
The closest distance between the discharge port and the track: 30CM (the side without the chain guard box)
The total width of fertilization: 75CM
8. Backfill homework
There are two types of backfill operations, rotary tillage backfill and trench backfill. Rotary tillage backfill is based on a
split cutter shaft rotary tiller, and the backfill operation function is realized by replacing the cutter shaft. It is easy to
disassemble and assemble, and the backfilling operation efficiency is high. Ditching and backfilling, based on ditching auxiliary equipment, the backfilling operation function can be realized by removing the ditching cutter head and replacing the auger. It is suitable for backfilling after ditching with ditching aids.
The main technical parameters:
Form: Spiral auger
Backfill width: 110CM
Speed: 550 rpm

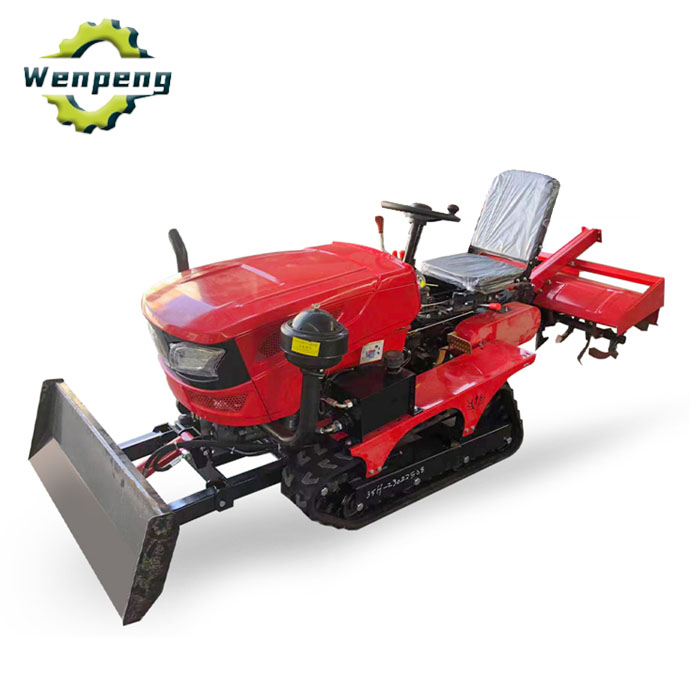

9. Bulldozer operation
The bulldozer is mainly used for finishing the ground in a small area, which can clear the ground obstacles, level the ground, backfill the earthwork, and increase the stability of the machine.
The main technical parameters:
Form: hydraulic lift bulldozer
Width: 112CM
Height: 36CM
